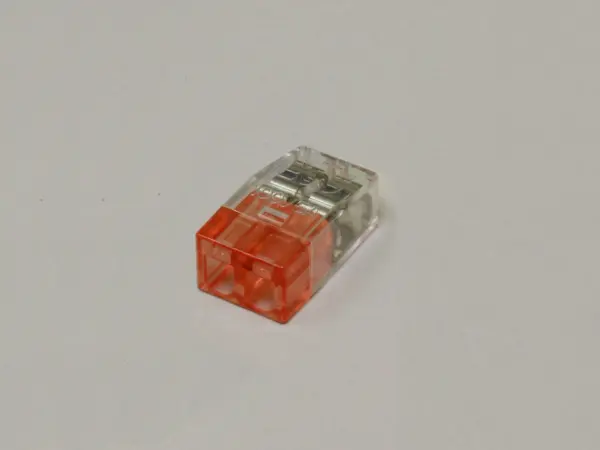

Quick Locks

(QLX MC-2)
0
Package Qty: 50
Quantity:

Features
  • QLX SQ surpass the temperature rise test to 716°F / 380°C in 15 minutes. (Japan Fire Department requirement)
  • Reliable double contacts.
Specifications
  • Pole: 2
  • Length: 15mm / 0.59"
  • Width: 8.2mm / 0.32"
  • Height: 5.8mm / 0.23"
  • Rated Voltage / Current: 100V / 5A (MAX)
  • Applicable Wire Range: Copper/Solid Wire: 0.9-1.2mm
  • Color: Transparent Red
  • Material (Connector Contact): Copper Alloy
  • Material (Housing): Polycarbonate
