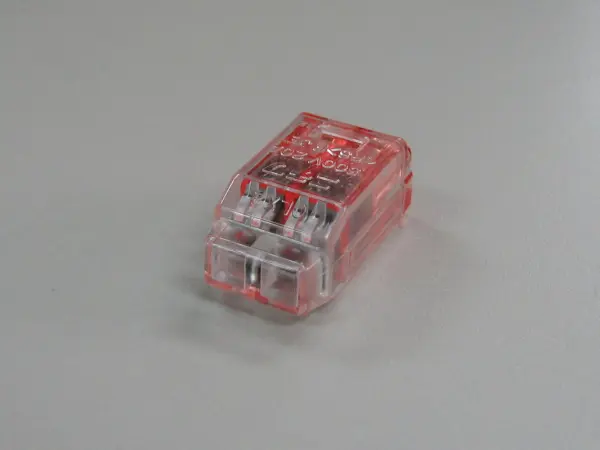

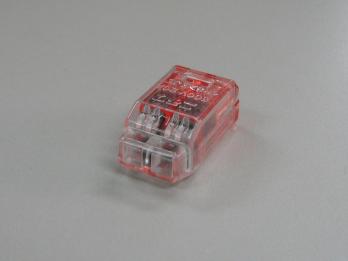

Push-In Wire Connector, 2-pole

(QLX 2)
0
Package Qty: 50
Quantity:

Features
  • Clear translucent housing enables visual inspection of correct wire installation.
  • Reliable, double contacts for higher reliability.
  • Simply strip and insert for instant connection.
  • Waved copper contact for easier insertion of wire.
Specifications
  • Pole: 2
  • Height: 9.1mm / 0.36"
  • Material (Spring): Stainless steel
  • Wire Size Range for Solid Wire (mm): 1.60-2.00
  • Material (Connector Contact): Oxygen free copper (tin plated)
  • Rated Voltage / Current: 300V / 20A
  • AWG: 14-12
  • Material (Housing): Polycarbonate (UL94V2)
  • Standards: JIS, UL, VDE
  • Length: 20.5mm / 0.81"
  • RoHS: RoHS 10
  • Width: 11.6mm / 0.46"
  • Color: Red
