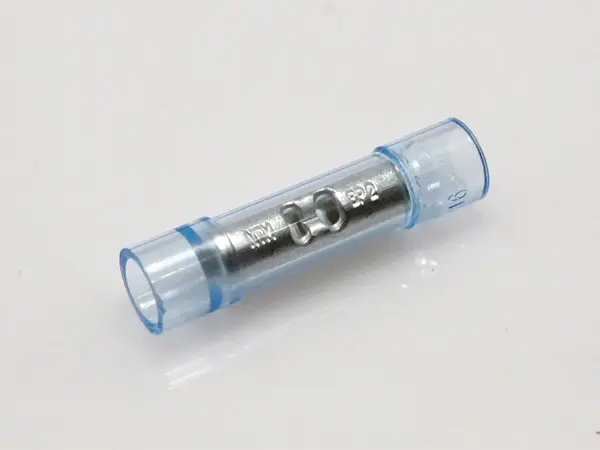

Polycarbonate Butt Connectors, Flared

(TMX BP-2-BCL)

0

Package Qty: 1000

Quantity:

Specifications

AWG: 16-14

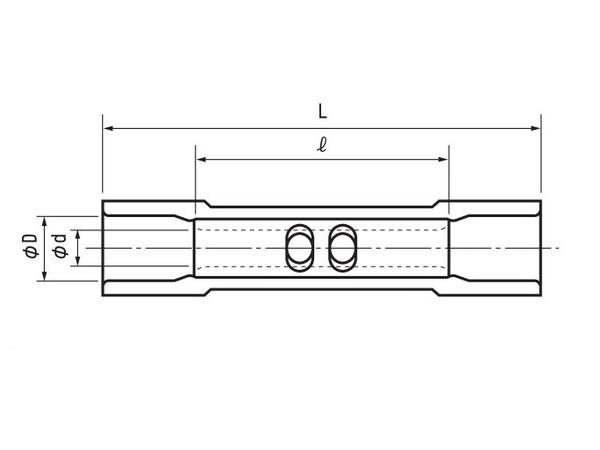

ød: 2.3mm / 0.09"
øD: 4.5mm / 0.18"
L: 25.5mm / 1"
l: 15mm / 0.59"
Wire Size Range for Stranded Wire (mm²): 1.04-2.63
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
Material (Insulator): Polycarbonate
Rated Voltage: 600V
Insulator Temperature: -40°F to 257°F / -40°C to 125°C
Applicable Hand Tools: NH 12, NH 32
Appicable Crimpint Machines: NA 10, NA 3
Applicable Dies: N10 12, N3 12
Standard Color: Translucent Blue
RoHS: RoHS 10
