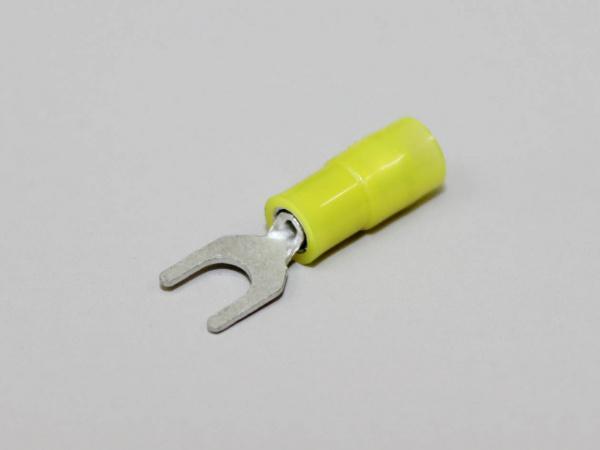

NYLON DBL CRIMP SPADE 24-20 #6 .228W

(TMDN 0.3Y-3.5N-YCL)
0
Package Qty: 1000
Quantity:

Specifications
  • Stud: 6
  • AWG: 24-20

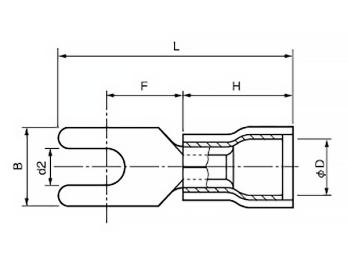

  • d2: 3.7mm / 0.15"
  • B: 5.8mm / 0.23"
  • L: 20.5mm / 0.81"
  • F: 5.8mm / 0.23"
  • H: 10mm / 0.39"
  • øD: 2.9mm / 0.11"
  • Wire Size Range for Stranded Wire (mm²): 0.2-0.5
  • Material: Copper
