Non-Insulated Terminals and Sleeves
∕
Non-Insulated Disconnect Terminals
∕ Male Disconnect Terminals w/Copper Sleeve on Barrel

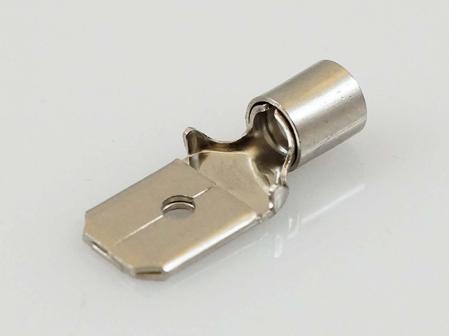

Male Disconnect Terminals w/Copper Sleeve on Barrel
Narrow Your Results By:
AWG
12-10 (1)
16-14 (2)
22-16 (1)
Reset
Rows Per Page:
10
20
50
100
Part #
AWG
Mating Tab
W
L
OD
D
Material (Connector Contact)
Pkg Qty
DS 630809-M
22-16
0.250" x 0.032"
0.250"
0.610"
0.102"
0.134"
Brass
1
Add to Quote
DS 480520-M
16-14
0.187" x 0.020"
0.187"
0.551"
0.130"
0.161"
Brass
1
Add to Quote
DS 630820-M
16-14
0.250" x 0.032"
0.250"
0.610"
0.130"
0.161"
Brass
1
Add to Quote
DS 630855-M
12-10
0.250" x 0.032"
0.250"
0.699"
0.173"
0.217"
Brass
1
Add to Quote
Showing 1-4 of 4 Results
1
Product Name:
Non-Insulated Disconnect Terminals w/Copper Sleeve on Barrel - Male
Model:
DS 630809-M
Product Name:
Non-Insulated Disconnect Terminals w/Copper Sleeve on Barrel - Male
Model:
DS 480520-M
Product Name:
Non-Insulated Disconnect Terminals w/Copper Sleeve on Barrel - Male
Model:
DS 630820-M
Product Name:
Non-Insulated Disconnect Terminals w/Copper Sleeve on Barrel - Male
Model:
DS 630855-M
Showing 1-4 of 4 Results
1
