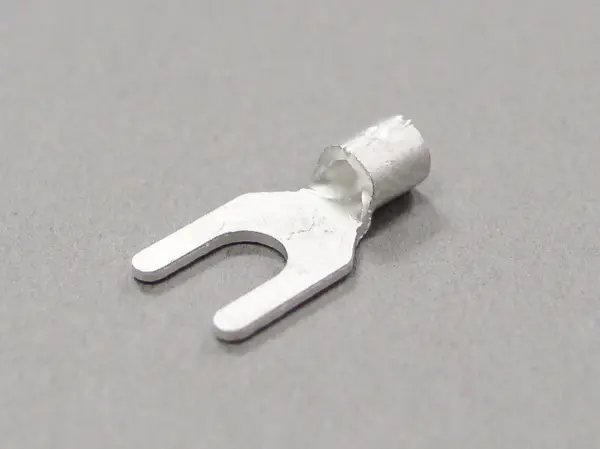

Non-Insulated Spade Terminals - Y Type

(2Y-4)
10.15
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: #8
  • AWG: 16-14
  • B: 8mm / 0.31"
  • L: 16mm / 0.63"
  • F: 7.1mm / 0.28"
  • E: 4.5mm / 0.18"
  • øD: 4.2mm / 0.17"
  • ød: 2.3mm / 0.09"
  • ød2: 4.3mm / 0.17"
  • Wire Size Range for Solid Wire (mm): 1.14-1.82
  • Wire Size Range for Stranded Wire (mmø|): 1.04-2.63
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • Standards: UL, CSA
  • RoHS: RoHS 10
