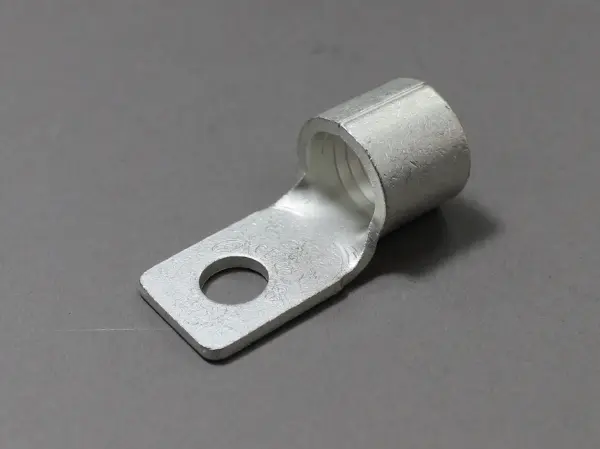

Non-Insulated Ring Terminals - Square

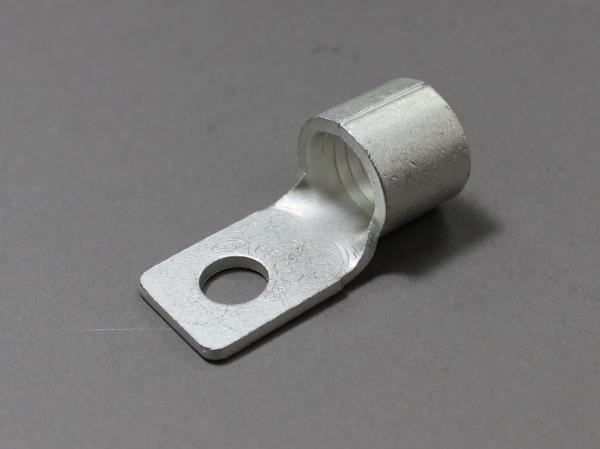

(CB 100-10)

4.5636

Package Qty: 50

Quantity:

Features

MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806

Specifications

Stud: 3/8"
AWG: 4/0
B: 22mm / 0.87"
L: 52mm / 2.05"
S: 11mm / 0.43"
F: 22mm / 0.87"
E: 19mm / 0.75"
øD: 22.5mm / 0.89"
ød: 16.4mm / 0.65"
ød2: 10.5mm / 0.41"
Wire Size Range for Stranded Wire (mmø|): 96.30-117.2
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
RoHS: RoHS 10
Standards: JEMA
