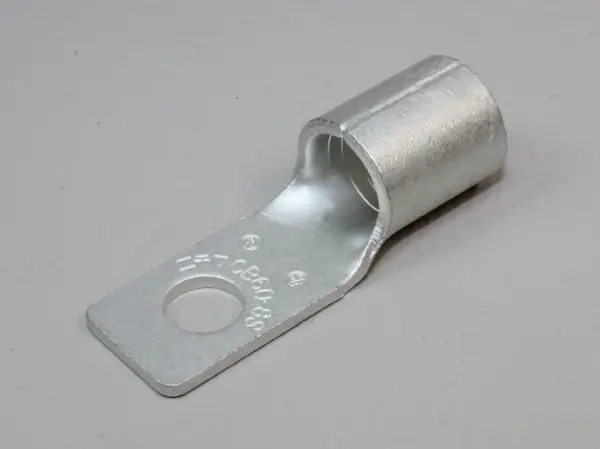

Non-Insulated Ring Terminals - Square

(CB 70-8)
4.8662
Package Qty: 25
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 5/16"
  • AWG: 2/0

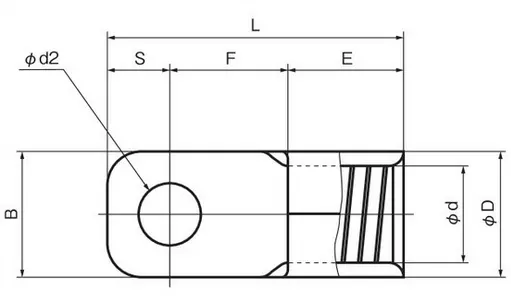

  • B: 20.5mm / 0.81"
  • L: 51mm / 2.01"
  • S: 12mm / 0.47"
  • F: 20mm / 0.79"
  • E: 19mm / 0.75"
  • øD: 17.8mm / 0.7"
  • ød: 13.5mm / 0.53"
  • ød2: 8.4mm / 0.33"
  • Wire Size Range for Stranded Wire (mmø|): 60.57-76.28
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
