Non-Insulated Ring Terminals - Square

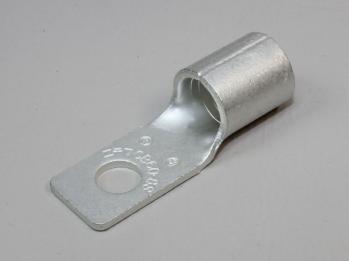

(CB 60-8S)
0
Package Qty: 100
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 5/16"
  • AWG: 1/0
  • B: 16mm / 0.63"
  • L: 49.5mm / 1.95"
  • S: 11mm / 0.43"
  • F: 20mm / 0.79"
  • E: 18.5mm / 0.73"
  • øD: 15.6mm / 0.61"
  • ød: 11.4mm / 0.45"
  • ød2: 8.4mm / 0.33"
  • Wire Size Range for Stranded Wire (mmø|): 42.42-60.57
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA
