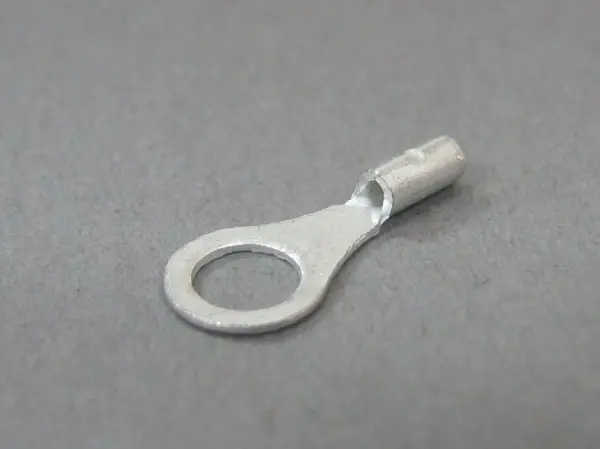

Non-Insulated Ring Terminals - R Type

(R 0.3-4)
0
Package Qty: 1000
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: #8
  • AWG: 24-20 (22-20 for UL & CSA)
  • B: 6.6mm / 0.26"
  • L: 15mm / 0.59"
  • F: 7.2mm / 0.28"
  • E: 4.5mm / 0.18"
  • øD: 2.2mm / 0.09"
  • ød: 1mm / 0.04"
  • ød2: 4.3mm / 0.17"
  • Wire Size Range for Solid Wire (mm): -
  • Wire Size Range for Stranded Wire (mmø|): 0.2-0.5 (0.3-0.5 for UL & CSA)
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA
