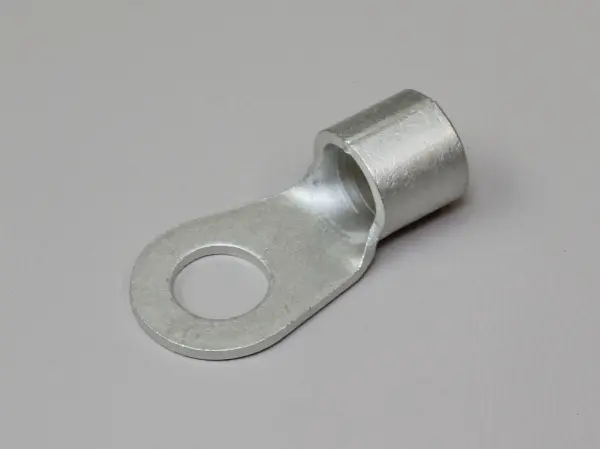

Non-Insulated Ring Terminals - R Type

(R 100-16)
5.6074
Package Qty: 20
Quantity:

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 3/8"
  • AWG: 4/0
  • B: 32mm / 1.26"
  • L: 62.5mm / 2.46"
  • F: 27.5mm / 1.08"
  • E: 19mm / 0.75"
  • øD: 22.5mm / 0.89"
  • ød: 16.4mm / 0.65"
  • ød2: 17mm / 0.67"
  • Wire Size Range for Stranded Wire (mmø|): 96.30-117.20
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA, JIS
