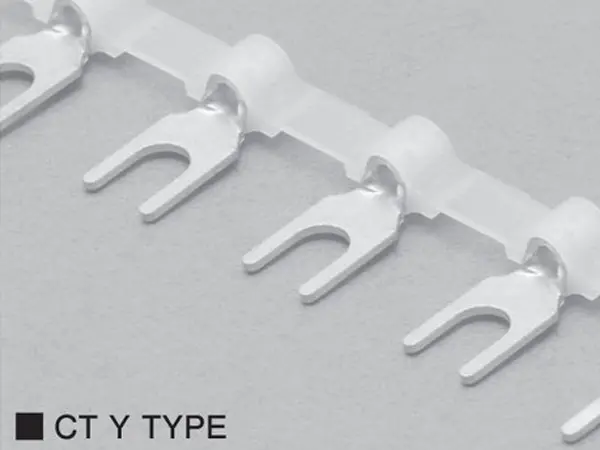

Non-Insulated Chain Terminals (CT) - Spades

(CT 2Y-3.5)

Package Qty: 1500

Quantity:

Features

CONNECTED INSULATED TERMINAL: Each terminal has a fixed distance which enables it to crimp continuously.
EASY CRIMP: Chain terminal comes on a reel, terminal is fed automatically to the correct position in the dies. With an optional sensor, insert the wire for automatic crimp.
QUALITY CRIMP: ICT crimping gets a consistent quality crimp.

Specifications

AWG: 16-14
d2: 3.7mm / 0.15"
B: 6.4mm / 0.25"
L: 15.8mm / 0.62"
F: 6.6mm / 0.26"
E: 4.5mm / 0.18"
ød: 2.3mm / 0.09"
Wire Size Range for Solid Wire (mm): 1.14-1.82
Wire Size Range for Stranded Wire (mm²): 1.04-2.63
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
Applicable Applicator: NC 2A
Standards: UL, CSA
RoHS: RoHS 10
