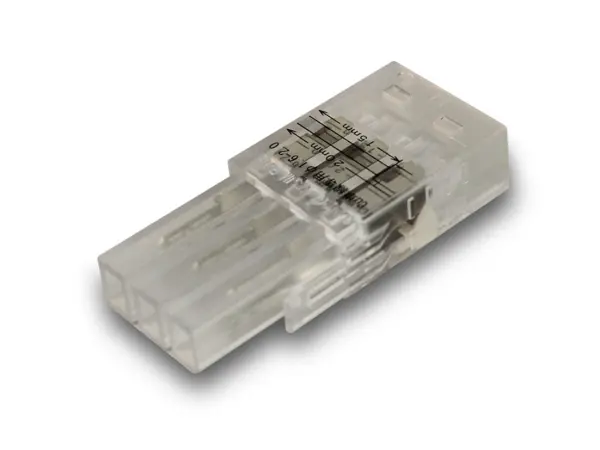

Mini Plug Joint Connectors - Plug Connector

(NPJM P01-3P)
0
Package Qty: 20
Quantity:

Specifications
  • Length: 49mm / 1.93"
  • Width: 22.9mm / 0.9"
  • Height: 10.4mm / 0.41"
  • Insulation maximum operating temperature: 248°F / 120°C
  • Rated Voltage / Current: 300V / 20A
  • Material: Polycarbonate Frame retardance UL94V-0)
  • Standards: UL94V-0,
  • Applicable Wire Size Range for Solid Wire (mm): 1.60, 2.00
  • Material (Connector Contact): Tin plated copper alloy
