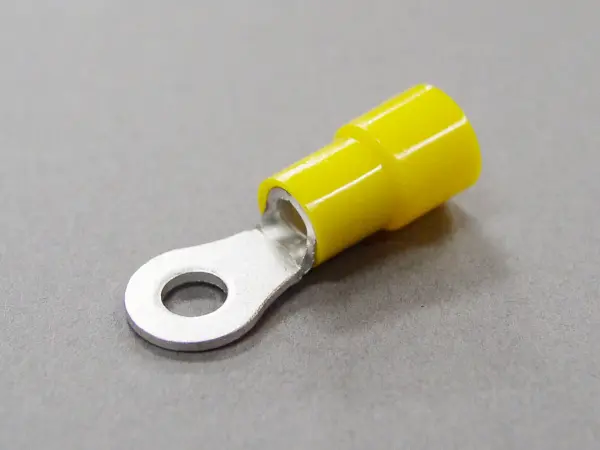

Eco-Friendly Polycarbonate Insulated Ring Terminals

(TMEX 5.5-4S-YEL)

Package Qty: 50

Quantity:

Technical Resources

Features

Excellent for insulation with rated voltage of 600V
Temperature range: -40°F to +257°F (-40°C to +125°C)
Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
RoHS SOC 10 Compliant
2 standard colors available for each size: 1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)

Specifications

Stud: 8
AWG: 12-10
B: 4.3mm / 0.17"
L: 25.7mm / 1.01"
F: 7.2mm / 0.28"
øD: 6.8mm / 0.27"
ød2: 4.3mm / 0.17"
Wire Size Range for Stranded Wire (mm²): 2.63-6.64
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
Standards: UL, C-UL
RoHS: RoHS 10
H: 14.0mm / 0.55"
Color: Yellow
Rated Voltage: 600V
Rated Temperature: -40°F to +257°F (-40°C to +125°C)
