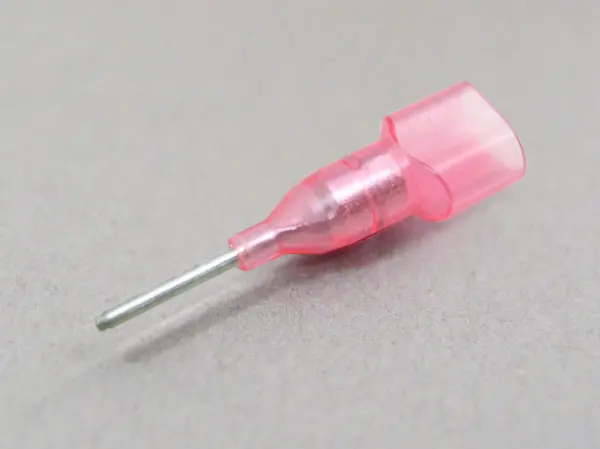

Insulated Pin Terminals, Straight, Twin Wire

(TGWV TC-1.25-9T-RCL)
0
Package Qty: 100
Quantity:

Specifications

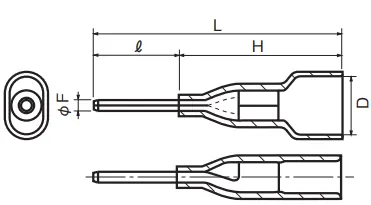

  • AWG: 22-16
  • øF: 1.1mm / 0.04"
  • l: 9mm / 0.35"
  • L: 26.6mm / 1.05"
  • H: 17.6mm / 0.69"
  • øD: 6.6mm / 0.26"
  • Wire Size Range for Stranded Wire (mm²): 0.30-1.65
  • Material (Insulator): Vinyl
  • Applicable Hand Tools: NH 65B, NH 65C
  • Rated Voltage: 300V
  • Rated Current: 17A
  • RoHS: RoHS 10
