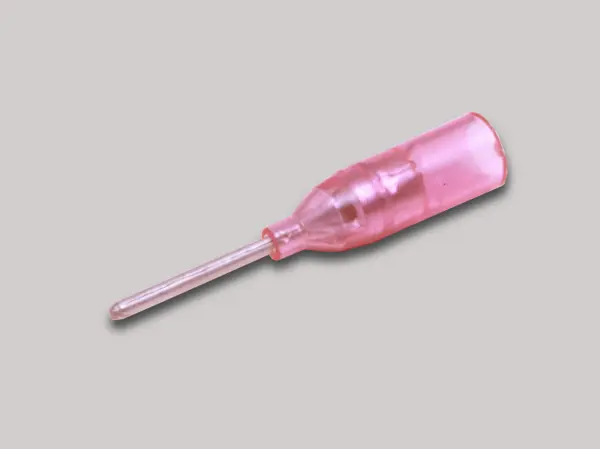

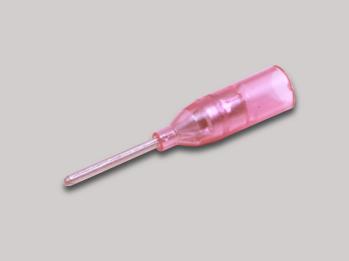

Insulated Pin Terminals, Straight, Single Wire

(TGV TC-1.25-9T-RCL)
0
Package Qty: 100
Quantity:

Specifications
  • Applicable Hand Tools: (NH 11/NH 32) NH 65B, NH 65C
  • Rated Voltage: 300V
  • Rated Current: 17A
  • Applicable Crimping Machines: NA 3, NA 10
  • Applicable Dies: N3 11T, N10 11
  • Material (Insulator): Vinyl
  • AWG: 22-16

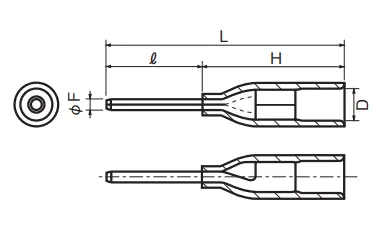

  • øF: 1.1mm / 0.04"
  • l: 9mm / 0.35"
  • L: 25mm / 0.98"
  • H: 16mm / 0.63"
  • øD: 3.6mm / 0.14"
  • Wire Size Range for Stranded Wire (mm²): 0.30-1.65
  • RoHS: RoHS 10
