Insulated Bullet & Receptacle Connectors - PCE Type

(PCE 5020-M-BCL)
31.8
Package Qty: 500
Quantity:

Specifications
  • AWG: 14

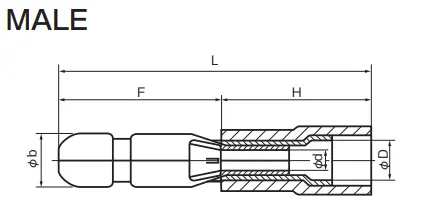

  • øb: 5mm / 0.2"
  • øB: -
  • ød: 2.4mm / 0.09"
  • øD: 3.9mm / 0.15"
  • L: 25.2mm / 0.99"
  • F: 13mm / 0.51"
  • H: 12.2mm / 0.48"
  • Wire Size Range for Stranded Wire: 2.0mm²
  • Material (Terminal): Brass (electro-tin-plated)
  • Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Rated Current: 20A
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Flame Retardance: UL 94 V-2
  • Standard Color: Blue
  • Applicable Hand Tools: NH 12, NH 32
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Dies: N10 12, N3 12
  • RoHS: RoHS 10
