Insulated Bullet & Receptacle Connectors - PCE Type

(PCE 5020-F-BLU)
0
Package Qty: 500
Quantity:

Specifications

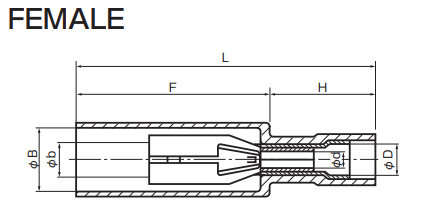

  • AWG: 14
  • øb: 4.9mm / 0.19"
  • øB: 7.4mm / 0.29"
  • ød: 2.4mm / 0.09"
  • øD: 3.9mm / 0.15"
  • L: 31.5mm / 1.24"
  • F: 20.3mm / 0.8"
  • H: 11.2mm / 0.44"
  • Wire Size Range for Stranded Wire: 2.0mm²
  • Material (Terminal): Brass (electro-tin-plated)
  • Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Rated Current: 20A
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Flame Retardance: UL 94 V-2
  • Standard Color: Blue
  • Applicable Hand Tools: NH 12, NH 32
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Dies: N10 12, N3 12
  • RoHS: RoHS 10
