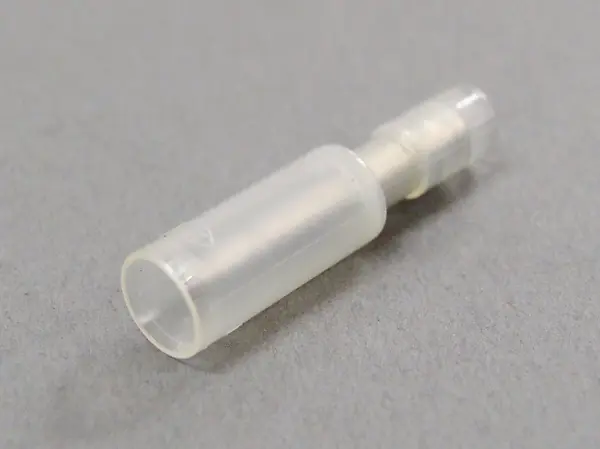

Insulated Bullet & Receptacle Connectors - PC Type

(PC 2005-M-CLR)

0

Package Qty: 1000

Quantity:

Specifications

AWG: 20-18
øb: 2mm / 0.08"
øB: 5.1mm / 0.2"
ød: 1.7mm / 0.07"
øD: 3.1mm / 0.12"
L: 26.5mm / 1.04"
F: 15mm / 0.59"
H: 11.5mm / 0.45"
Wire Size Range for Stranded Wire: 0.50-0.75mm²
Material (Terminal): Brass (electro-tin-plated)
Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
Material (Insulator): Nylon
Rated Voltage: 300V
Rated Current: 10-12A
Insulator Temperature: -40°F to 221°F / -40°C to 105°C
Flame Retardance: UL 94 V-2
Standard Color: Translucent
Applicable Hand Tools: NH 5, NH 32
Appicable Crimpint Machines: NA 10, NA 3
Applicable Dies: N10 10, N3 15
RoHS: RoHS 10
