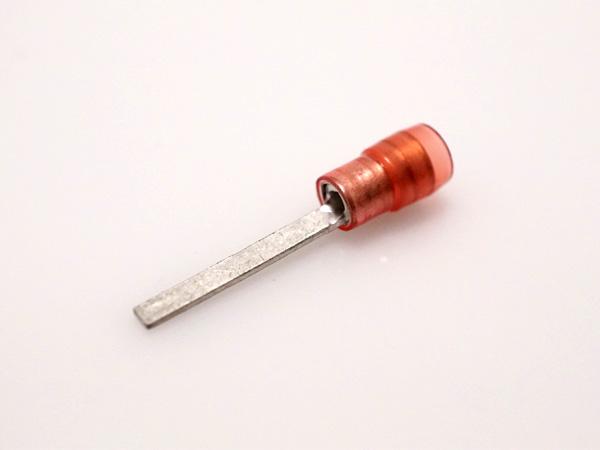

Insulated Blade Terminals, Flared, Extra Copper Sleeve

(TMDEN BT-1.25-11-RCL)
0
Package Qty: 1
Quantity:

Specifications
  • AWG: 22-16
  • B: 2.99mm / 0.12"
  • t: 0.76mm / 0.03"
  • L: 21.2mm / 0.83"
  • G: 11.2mm / 0.44"
  • H: 10mm / 0.39"
  • D: 4.08mm / 0.16"
  • Wire Size Range for Stranded Wire (in²): 0.0005-0.003in²
  • Material (Connector Contact): Copper
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Standards: UL, CSA
