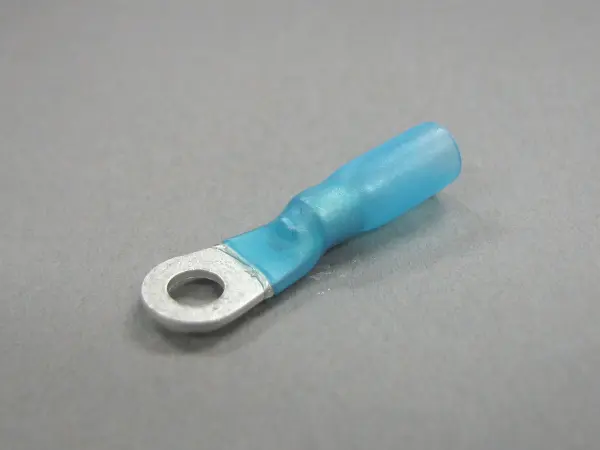

Heat-Shrink Ring Terminals

(SR 2-5C)
40
Package Qty: 1000
Quantity:

Features
  • Application of heat is sufficient when the inner adhesive melts and slightly protrudes from the outer insulator.
  • Apply heat from the center of the butt moving towards the end while rotating the butt.
  • Apply heat of 248°F / 120°C on the insulator. Do not apply flame directly. Do not make excessive shrinkage, as such by an electric furnace of 284°F / 140°C, for over 5 minutes.
Specifications
  • AWG: 14
  • ød2: 5.3mm / 0.21"
  • B: 9.5mm / 0.37"
  • L: 27.8mm / 1.09"
  • F: 9.5mm / 0.37"
  • H: 17mm / 0.67"
  • øD: 4.9mm / 0.19"
  • ød: 2.3mm / 0.09"
  • Wire Size Range for Stranded Wire: 2.0mm²
  • Material (Insulator): Polyethylene, polyolefin adhesive
  • Rated Voltage: 600V
  • Rated Current: 27A (2mm²)
  • Maximum Insulation Temperature: 221F° / 105C°
  • RoHS: RoHS 10
  • Applicable Hand Tools: NH 82A
