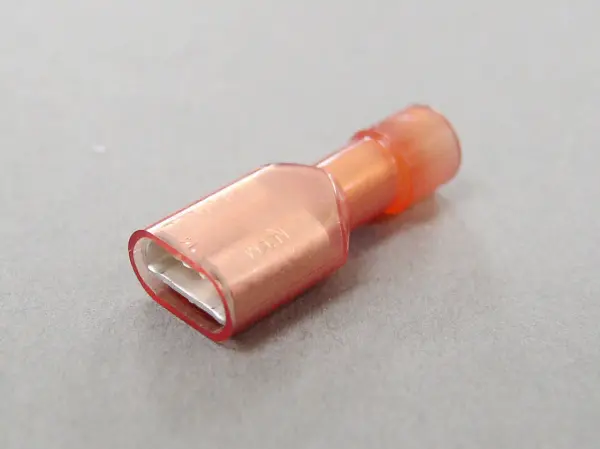

Fully Insulated Disconnect Terminals, Extra Copper Sleeve on Barrel, Female

(TMEDN 630809-FA-RCL)

0

Package Qty: 1000

Quantity:

Specifications

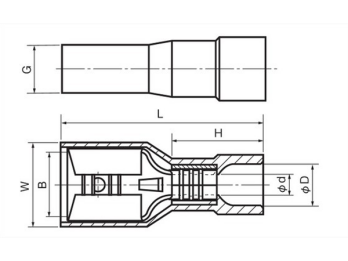

AWG: 18-16
B: 6.8mm / 0.27"
W: 9mm / 0.35"
L: 21mm / 0.83"
ød: 1.7mm / 0.07"
øD: 4.1mm / 0.16"
G: 4.9mm / 0.19"
H: 9.5mm / 0.37"
Mating Tab Thickness: 0.8mm / 0.03"
Wire Size Range for Stranded Wire: 0.75-1.25mm²
Standard Color: Red Translucent
Material (Terminal): Brass (electro-tin-plated)
Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
Material (Insulator): Nylon
Rated Voltage: 300V
Insulator Temperature: -40°F to 221°F / -40°C to 105°C
Flame Retardance: UL 94 V-2
Standards: UL, CSA
RoHS: RoHS 10
Applicable Hand Tools: NH 11, NH 32
Appicable Crimpint Machines: NA 10, NA 3
Applicable Applicator: N10AP-TM
Applicable Dies: N10 11, N3 11
Tab Size: .250 x .032
