Insulated Chain Terminals (ICT) - Flanged Spades

(ICTN 1.25Y-4W)

Package Qty: 1500

Quantity:

Features

CONNECTED INSULATED TERMINAL: Each terminal has a fixed distance which enables it to crimp continuously.
EASY CRIMP: Chain terminal comes on a reel, terminal is fed automatically to the correct position in the dies. With an optional sensor, insert the wire for automatic crimp.
QUALITY CRIMP: ICT crimping gets a consistent quality crimp.

Specifications

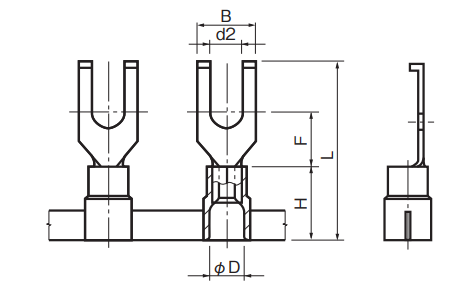

AWG: 22-18 20-16
ød2: 4.3mm / 0.17"
B: 7.7mm / 0.3"
L: 19.5mm / 0.77"
F: 5.6mm / 0.22"
H: 10mm / 0.39"
øD: 4.1mm / 0.16"
Wire Size Range for Stranded Wire (mm²): 0.3-0.75 (NC11A2), 0.5-1.65 (NC11A)
Material (Connector Contact): Oxygen free copper (electro-tin-plated)
Material (Insulator): Nylon
Rated Voltage: 300V
Insulator Temperature: -40°F to 221°F / -40°C to 105°C
Applicable Applicator: NC 11A2, NC 11A
Standard Color: Red Translucent
Standards: UL, CSA
RoHS: RoHS 10
