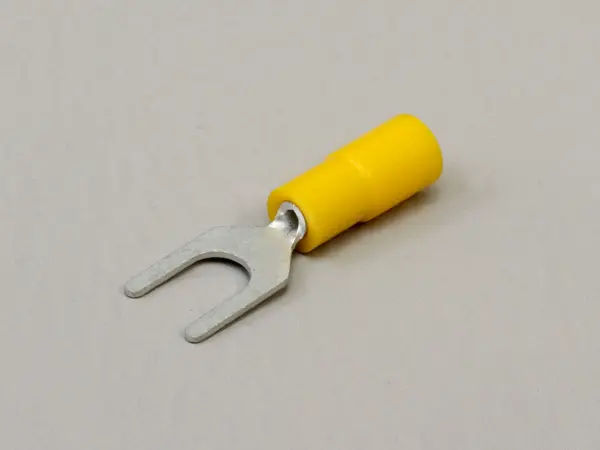

Eco-Friendly Polycarbonate Insulated Spade Terminals

(TMEX 0.3Y-3.5N-YEL)

16.74

Package Qty: 1000

Quantity:

Technical Resources

Features

Excellent for insulation with rated voltage of 600V
Temperature range: -40°F to +257°F (-40°C to +125°C)
Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
RoHS SOC 10 Compliant
2 standard colors available for each size: 1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)

Specifications

Stud: 6
AWG: 24-20
d2: 3.7mm / 0.15"
B: 5.8mm / 0.23"
L: 20.5mm / 0.81"
F: 5.8mm / 0.23"
H: 10mm / 0.39"
øD: 2.8mm / 0.11"
Wire Size Range for Stranded Wire (mm²): 0.2-0.5
Applicable Hand Tools: NH 5, NH 32
Appicable Crimpint Machines: NA 10, NA 3
Applicable Dies: N10 10, N3 5
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
Material (Insulator): Polycarbonate
Rated Voltage: 600V
Insulator Temperature: -40°F to 257°F / -40°C to 125°C
Standards: UL, C-UL
RoHS: RoHS 10
