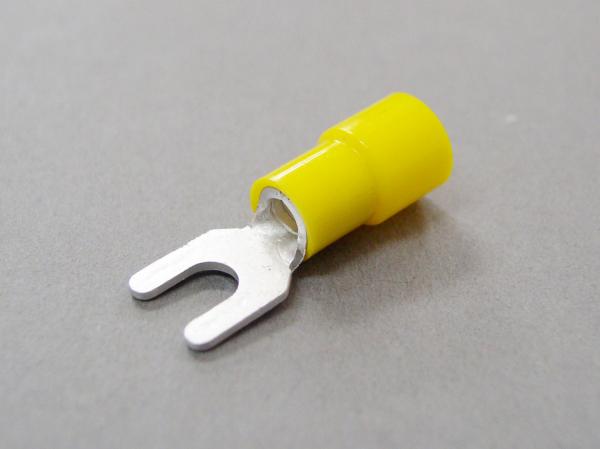

Eco-Friendly Polycarbonate Insulated Spade Terminals

(TMEX 5.5Y-3.5N-YEL)

Package Qty: 50

Quantity:

Specifications

Stud: 8
AWG: 12-10

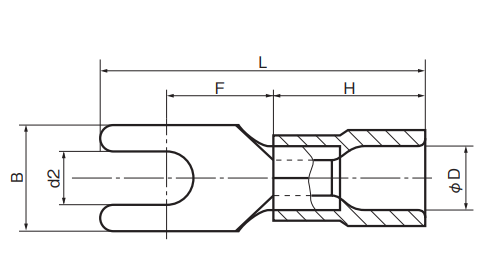

d2: 4.3mm / 0.17"
B: 7mm / 0.28"
L: 24.5mm / 0.96"
F: 7.2mm / 0.28"
H: 14mm / 0.55"
øD: 6.8mm / 0.27"
Wire Size Range for Stranded Wire (mm²): 2.63-6.64
Applicable Hand Tools: NH 13
Appicable Crimpint Machines: NA 10, NA 3
Applicable Dies: N10 13, N3 13
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
Material (Insulator): Polycarbonate
Rated Voltage: 600V
Insulator Temperature: -40°F to 257°F / -40°C to 125°C
Standards: -
RoHS: RoHS 10
