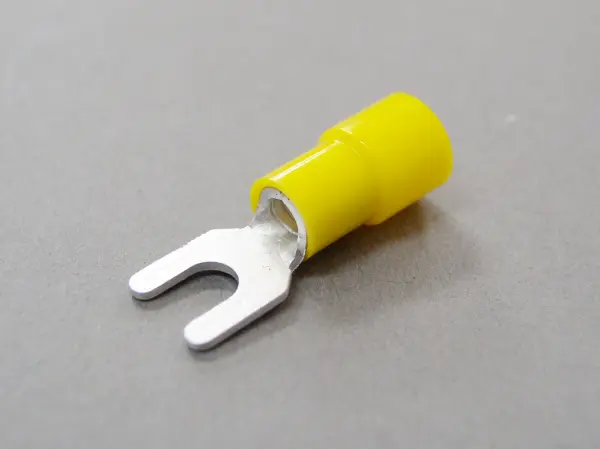

Eco-Friendly Polycarbonate Insulated Spade Terminals

(TMEX 3.5Y-4-YEL)
0
Package Qty: 50
Quantity:

Specifications
  • Stud: 8
  • AWG: 12
  • d2: 4.3mm / 0.17"
  • B: 8mm / 0.31"
  • L: 26mm / 1.02"
  • F: 7.2mm / 0.28"
  • H: 14mm / 0.55"
  • øD: 6.3mm / 0.25"
  • Wire Size Range for Stranded Wire (mm²): 2.63-4.6
  • Applicable Hand Tools: NH 13
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Dies: N10 13, N3 13
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
  • Material (Insulator): Polycarbonate
  • Rated Voltage: 600V
  • Insulator Temperature: -40°F to 257°F / -40°C to 125°C
  • Standards: UL, C-UL
  • RoHS: RoHS 10
