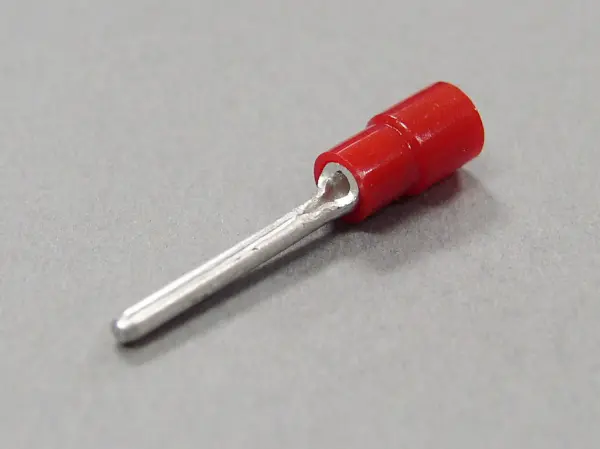

Eco-Friendly Polycarbonate Insulated Pin Terminals

(TMEX TC-1.25-16-RED)

Package Qty: 1000

Quantity:

Technical Resources

Features

Excellent for insulation with rated voltage of 600V
Temperature range: -40°F to +257°F (-40°C to +125°C)
Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
RoHS SOC 10 Compliant
2 standard colors available for each size: 1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)

Specifications

AWG: 22-16
øF: 1.9mm / 0.07"
l: 16mm / 0.63"
L: 27.5mm / 1.08"
H: 10mm / 0.39"
øD: 4.1mm / 0.16"
Wire Size Range for Stranded Wire (mm²): 0.3-1.65
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
Standards: UL, C-UL
RoHS: RoHS 10
Applicable Hand Tools: NH 11, NH 32
Applicable Crimping Machines: NA 10, NA 3
Applicable Dies: N10 11, N3 11
