Easy Lock Connectors - 187 Series - Terminals

(CSS 64873-F3)
0
Package Qty: 3000
Quantity:

Features
  • Locking Mechanism: Locking mechanism assures the safety of the connection by preventing withdrawal from vibration or wire tension.
  • Very Low Insertion Force: Very low insertion force is required to insert a mated tab. Operators can connect easily.
  • Very Low Withdrawal Force: As same as insertion, very low withdrawal force is required. Just squeeze to release the locking mechanism, and pull off the housing.
Specifications
  • RoHS: RoHS 10
  • Standards: UL, CSA
  • Material (Connector Contact): Pre-Tin Brass
  • Rated Voltage / Current: AC 250V / 10A
  • Wire Range (mm²): 0.30-0.75
  • Mating Tab Thickness: 0.5mm / 0.02"

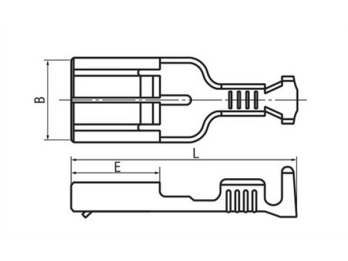

  • L: 18mm / 0.71"
  • E: 6.8mm / 0.27"
  • B: 5mm / 0.2"
  • Applicator: FB 59
  • AWG: 22-18
  • Contact Retention Force: 50N or more
