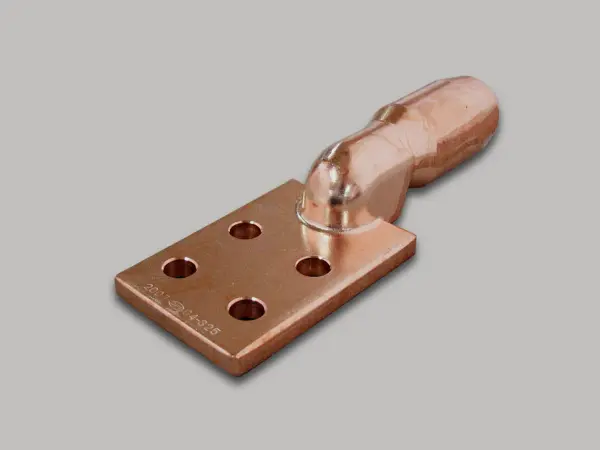

Compression Terminals - C4 Type

(C4-150)
0
Package Qty: 3
Quantity:

Specifications
  • øD: 29mm / 1.14"
  • ød1: 16.9mm / 0.67"
  • E: 44mm / 1.73"
  • A: 115mm / 4.53"
  • A1: 25mm / 0.98"
  • A2: 40mm / 1.57"
  • A3: 50mm / 1.97"
  • B: 75mm / 2.95"
  • B1: 17.4mm / 0.69"
  • B2: 40mm / 1.57"
  • C: 10mm / 0.39"
  • ød2: 14mm / 0.55"
  • L: 185mm / 7.28"
  • H: 16mm / 0.63"
  • Bolt Size: M12x4
  • Applied Wire: Strand Composition (Number of wires/mm): 37/2.3
  • Applied Wire: Strand Outer Diameter: 16.1mm / 0.63"
  • Vertex Distance of Hexagonal Dies: 29
  • Material: Conductive face is tin lead plated
