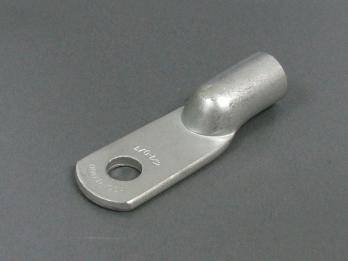

Tubular Terminals, Single Hole - Type A

(D 8-A)
0
Package Qty: 200
Quantity:

Features
  • Anti-vibration and anti-dust design.
  • Available without stud hole upon your request.
  • Crimp type
  • To crimp D 8-A & D 8-B requires optional dies for pneumatic crimping tool, NA 20.

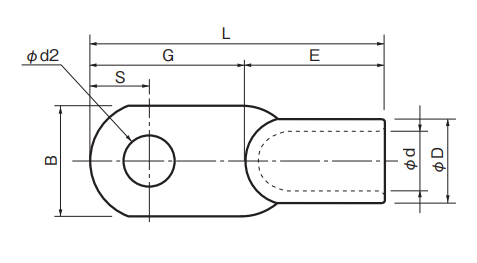

Specifications
  • ød2: 5.3mm / 0.21"
  • B: 9.5mm / 0.37"
  • L: 26mm / 1.02"
  • S: 7mm / 0.28"
  • G: 14mm / 0.55"
  • E: 12mm / 0.47"
  • øD: 7mm / 0.28"
  • ød: 4.5mm / 0.18"
  • Material: Copper
  • RoHS: RoHS 10
  • Wire Size Range for Solid Wire (mm): 2.89-3.65
  • Wire Size Range for Stranded Wire (mmø|): 6.64-10.52
  • AWG: 8
